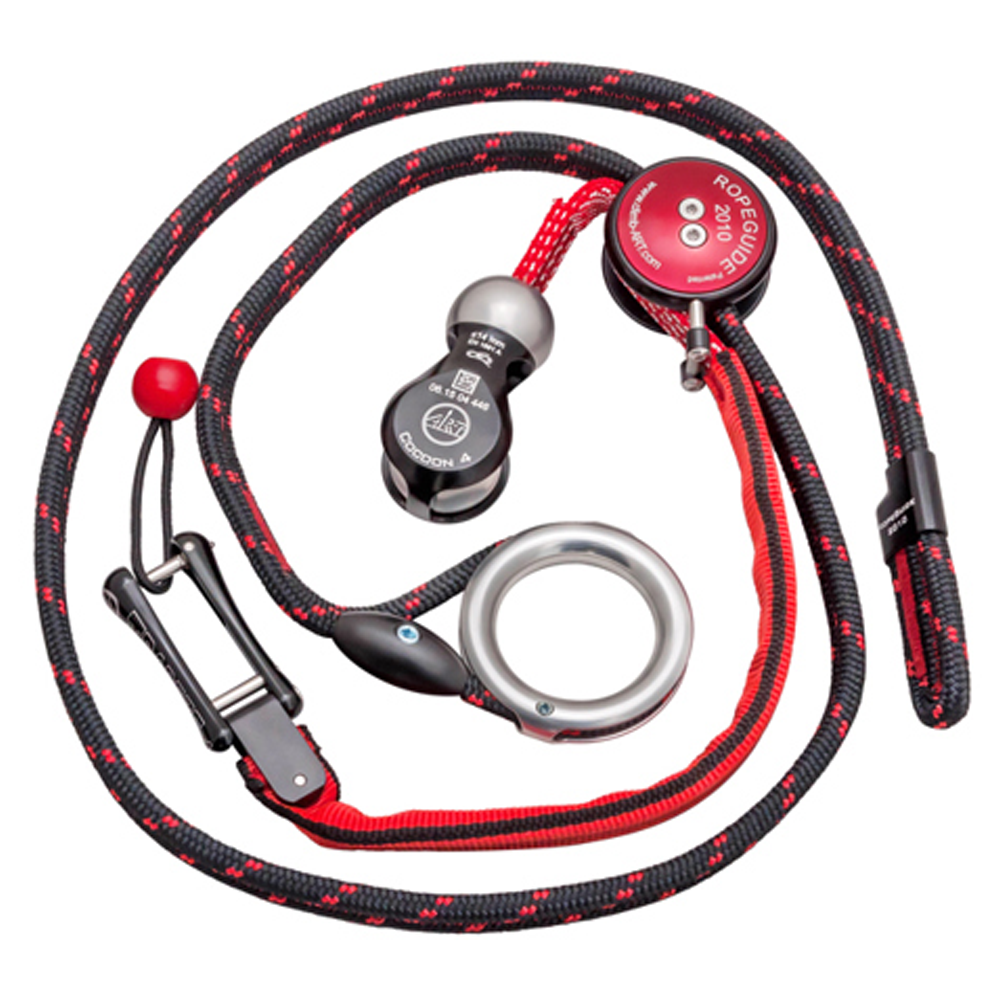

ART Ropeguide Guide 2010 with Cocoon




The Rope Guide 2012 Cocoon 5 combines the best properties of his predecessors with the thrilling results of current advancements: he is very light, can be charged even more and is exceedingly safe. His so-called Tunnel Ring is unique. Sharing only 50 % of the weight of a massive ring, the Tunnel Ring concept achieves comparable resistance and higher safety simultaneously. This is a typical ARTifice: Tunnel Ring instead of a massive ring. The internal rope is protected by the ring. Amazing but true: the rope raises the breaking load of the ring and vice versa – an ingenious symbiosis. Less weight, higher rupture load, and doubled safety, since the runner leading to the pulley crosses the ring and the loop as well.


  • Patented
  • Mobile anchor
  • Certified to EN 795 B
  • Body and parts are made of aluminum machine in the solid
  • Integrated Zip Absorber 1 (shock absorber)
  • Super smooth rope feed thanks to Cocoon
  • Continuously adjustable length
  • Can be combined with Double Snapper 3
  • Easy lifting of climbing system after having thrown the ring end
  • Optimal "choking" mode (choking the trunk)
  • no "rolling" of the friction saver when choked (as with standard ropes)
  • Automatic blocking without slippage
  • Easy adjustment even after heavy loads
  • Top safety and loading capacity based on the Tunnel Ring rope combination
  • Optimized retrieving of ring based on integrated fender
  • Easy release of device when retrieving
  • Low kink friction saver provides nice width and abrasion resistance by parallel sewn 8mm polyester/Dyneema rope
  • Thanks to the Trapeze 5, installment and retrieving of climbing line is very comfortable
  • Service life: 10 years for metal parts
  • Tested: 18kN/ 3min
  • Breaking strength: 24kN
